Runto FORKLIFT FEATURES

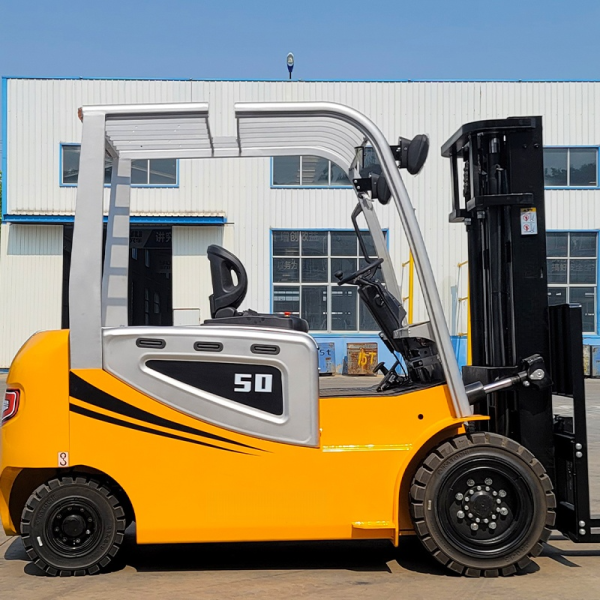

Electric Forklifts with a load capacity of 5 tons. These load handling machines were developed with a focus on maximum performance and equipment durability.
Reliable AC controller
Curtis AC controllers provide an unbeatable combination of power, performance and functionality. The IP 65 rated controller is very reliable and well proven in tough applications.
Rounded Design Counterweight
Excellent visibility
The precisely designed overhead guard profile with angled roof bars provides a clear upward view whilst ensuring ultimate strength for safety. The excellent visibility enables you to work faster and more efficient.
Productive acceleration & braking
The productive acceleration and braking gives the operator maximum safety and convenience. When starting the truck, the initial acceleration is reduced for safe & comfortable movement. The acceleration increases when driving at mid & high-speed for a more productive operation. An ergonomically positioned brake decreases the braking pedal effort.
Finger tip controls (optional)
Fast, precise and infinitely controllable fingertip control makes the 9-Series effortless and efficient.
Ergonomic Interior Design
Operators perform best when their working conditions are perfect and the Bobcat 9-Series has been designed to make this a reality.
The steering column and full suspension comfort seat, armrest and optional headrest are all fully adjustable to accommodate every operator’s individual preferences. The display and all control functions are ideally situated for maximum comfort. In addition, operators can control the truck’s performance settings during operation, simply by navigating the instrument panel.
Easy to Control
The effortless new Doosan finger-tip control system or mechanical hydraulic levers enables the most effective operation.
The specially designed Convenience Box uses combinations of new and old favorites giving great added value, such as a large cup holder, USB port & 12V cigar jack and clip board holder. These features ensure optimal operator comfort.
Hydraulic Levers: Simple, reliable and familiar. The direction switch is located on the hydraulic lever, meaning a quick change of forward to backward is no problem and completely safe as there is no need to take your hands off the steering wheel or hydraulic levers.
New Finger-tip Controls: Optimal ergonomics gives optimal performance. The fast and accurate fingertip system makes operating the new Bobcat 9-Series effortless and more efficient than ever before.
The ergonomic small steering wheel (ø 280 mm) with knob enhances operating comfort and productivity and increases the available legroom in the operator compartment.
Ease of Access Ensures Maximum Comfort
Many operators have the need to get on and off the truck regularly for many different reasons.
So, we have designed a number of features to make this easier and safer than ever before.
● Large entry step plate with an anti-slip pattern ensures sure footing even for large safety boots
● Easy grip handle makes mounting and dismounting the machine easier
● Large uncluttered floor plate with no trip hazards gives optimal comfort and more leg room
● Angled floor plate reduces strain on ankles and large pedals ensure maximum safety and ease of operation
Large Panoramic Mirror
Provides the operator a clear view of the rear working area, improving working safety & efficiency.
LED Lights
Brighter and last longer than traditional sealed beams or halogen lights.
Rear Grab Bar with Horn
Enhances safety, comfort and convenience when traveling in reverse.
Anti-Slip Step Plate
The anti-slip pattern step plate increases safety when mounting the truck during snowy or rainy weather conditions.
Emergency stop switch
Integrated in the fingertip, the emergency stop switch is very easy to reach, to respond immediately to emergency situations.
Worldwide service network
Doosan provides high-quality support, relying on its extensive dealer network. No matter where you are located, highly-skilled professionals are always ready to help you, guaranteeing maximum uptime.
Bobcat Genuine Parts
The parts warehouse, located in Belgium, supplies high quality parts to our European Dealer Network. Therefore, we can guarantee an optimal service for your trucks.
LCD display
The large color LCD display keeps the operator informed about the condition of the truck. Upcoming service intervals will be indicated on the display.
Toolless removable side panel
The side panel can be removed without the need for any tool, not even a screwdriver. In this way, the operator or service technician saves valuable time. Thanks to the wide open hood angle, components are easily accessible to service.
Easy to access Controller Room
No need to open the hood to access the controller to change settings or connecting the diagnostics tool.
Diagnostics tool
Thanks to the kvaser connector, the performance settings can quickly and easily be finetuned. The EasyViewer software has been developed by Curtis, exclusively for Bobcat for maximum control over your truck settings.
CPD-50 Electric Forklift Parameters
| Characteristic | |
| Model | CPD-50B |
| Rated Capacity | 5000KG |
| Load Center Distance | 500mm |
| Power Mode | Lithium & lead-acid batteries |
| Wheelbase | 2040mm |
| Performance | |
| Travel speed, laden/unladen | 12/13(KM/H) |
| Lifting speed, laden/unladen | 250/280(MM/S) |
| Lowering speed, laden/unladen | 450(MM/S) |
| Battery voltage/ nominal capacity | 80V/500Ah |
| Battery weight | 1100KG |
| Weight | |
| Service mass (With battery) | 7100 KG |
| Alex load: unload, front/rear | 3200/3900 |
| Alex load: load, front/rear | 10850/1250 |
| Maximum negoniable gradient, laden/unladen | 12/20% |
| Electrical configuration | |
| Drive motor power-60 minutes | 18AC |
| Lift motor power-15 minutes | 25AC |
| Drive motor controlling mode | MOSFET/AC |
| Lifting motor controlling mode | MOSFET/AC |
| Service brake/Parking brake | Hydraulic /Mechanial |
| Tyre | |
| Tyre type | Pneumatic tire |
| Wheels number (front/rear) | 2/2 |
| Front track | 1310mm |
| Rear track | 1110mm |
| Tyre (front) | 250-15 |
| Tyre(rear) | 21*8-9 |
| Size | |
| Front overhang | 573mm |
| Tilt of the mast, front/rear | 6/12° |
| Height, mast retraction | 2340mm |
| Free lift height | 120mm |
| Overall maximum lift height | 3000mm |
| Height, mast extended | 4200/3790mm |
| Overhead guard height | 2350mm |
| Lateral Fork Adjustment (Outside of Forks) Max/Min | 1240/300mm |
| Fork size (LxWxT) | 55*150*1070mm |
| Truck body length (fork excluded) | 2990mm |
| Truck body width | 1585mm |
| Turning radius | 2700mm |
| Groubd clearance under mast | 160mm |
| Ground clearance at center of wheelbase (laden) | 160mm |
| Width of aisle right-angle stacking (pallet1000x1000mm clearance 200mm) | 4543mm |
| Width of aisle right-angle stacking (pallet1200x1200mm clearance 200mm) | 4673mm |
| *The company reserves the right to change product design and specifications without notice. | |
CPD-50 Electric Forklift Mast Parameter Table
| Gantry
form |
4.0/4.5T/5.0T | |||||||||||
| Total height | Free lifting height | Gantry inclination | Rated load | |||||||||
| Gantry
model |
Maximumlifting
height |
Gantry static
height |
Rack rack | Shelves
without shelves |
Rack rack | Shelves
without shelves |
Front | Rear | Load center distance 500 | |||
| Two wide view gantry | mm | mm | mm | mm | mm | mm | mm | 4.0 | 4.5 | 5 | ||
| M250 | 2500 | 2150 | 3652 | 3297 | 150 | 150 | 5 | 10 | 4000 | 4500 | 5000 | |
| M300 | 3000 | 2350 | 4152 | 3797 | 150 | 150 | 5 | 10 | 4000 | 4500 | 5000 | |
| M330 | 3300 | 2500 | 4452 | 4097 | 150 | 150 | 5 | 10 | 4000 | 4500 | 5000 | |
| M350 | 3500 | 2600 | 4652 | 4297 | 150 | 150 | 5 | 10 | 4000 | 4400 | 4900 | |
| M400 | 4000 | 2800 | 5152 | 5097 | 150 | 150 | 5 | 6 | 3800 | 4250 | 4750 | |
| Two-stage fully free gantry | U260 | 2600 | 2200 | 3652 | 3247 | 995 | 1341 | 5 | 10 | 4000 | 4500 | 5000 |
| U300 | 3000 | 2400 | 4152 | 3747 | 1190 | 1536 | 5 | 10 | 4000 | 4500 | 5000 | |
| U350 | 3500 | 2700 | 4752 | 4347 | 1440 | 1786 | 5 | 10 | 4000 | 4500 | 5000 | |
| Three stage fully free gantry | N400 | 4000 | 2235 | 5452 | 5083 | 1025 | 1371 | 5 | 6 | 4000 | 4500 | 4750 |
| N450 | 4500 | 2400 | 5652 | 5283 | 1190 | 1536 | 5 | 6 | 3200 | 3600 | 4000 | |
| N480 | 4800 | 2500 | 5952 | 5583 | 1290 | 1636 | 5 | 6 | 3000 | 3350 | 3750 | |
| N500 | 5000 | 2600 | 6152 | 5783 | 1355 | 1701 | 5 | 6 | 2600 | 3150 | 3500 | |
| N550 | 5500 | 2730 | 6652 | 6283 | 1525 | 1871 | 3 | 3 | 2250 | 2550 | 2850 | |
| N600 | 6000 | 2965 | 7152 | 6783 | 1690 | 2036 | 5 | 3 | 1700 | 1950 | 2200 | |
| Reduced load rating by 130 kg for all added sideshifts | ||||||||||||
CPD-50 Electric Forklift Options List
POWER Product Advantages & Picture Details
Suitable for various voltages and industrial waterproof plugs and socket
Accessories for various working conditions
