POWER FORKLIFT FEATURES
1. Pedal distributing of best angle
The electric 4 wheel counterbalance forklift truck is equipped with a surrounding type seat which is an ergonomic design. It allows for waist adjustment and helps the operator maintain proper driving posture.
2. Larger gradeability
The gradeability can be up to 15%. The climbing speed can be up to 4km/h even when fully loaded.
3. Cruising ability
The durable battery and improved performance and efficiency allocation can greatly increase the cruising ability of the forklift truck which means that the working period can be increased by 10%.
4. Faster moving speed
Fully loaded speed can be up to 14km/h.
5. High intensity overhead guard
The overhead guard is made of an irregular polygonal extruded material which delivers good compressive resistance and impact resistance in order to ensure the intensity of the overhead guard. Meanwhile, it can protect the driver from being hurt by falling materials.
6. High position steering node
The lateral moving is highly stable to reduce rollover.
7. Superior noise reduction technology
The reasonable distribution and design of the noise reduction technology effectively quiets the forklift.
8. Fully AC system
This truck has superior performance control. The motor is always maintenance free.
9. The battery can be loaded and unloaded at the side so that the time of changing battery can be effectively reduced and the working efficiency can be improved, especially for the working condition with higher working intensity. There are optional batteries such as FAAM and GS.
10. 70% of the truck adopts molded components which can ensure the reliability of the whole truck.

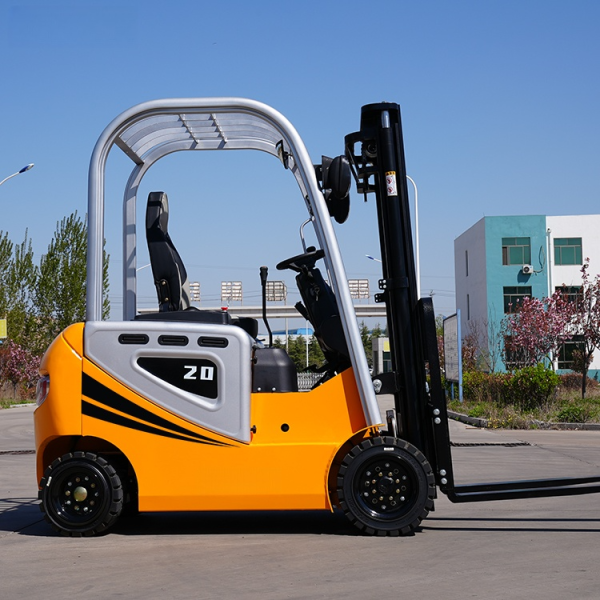

CPD-20 Electric Forklift Parameters
| Characteristic | |||||
| Model | CPD-20B | CPD-20C | CPD-20D | CPD-20E | CPD-20M |
| Rated Capacity | 2000KG | 2000KG | 2000KG | 2000KG | 2000KG |
| Load Center Distance | 500mm | 500mm | 500mm | 500mm | |
| Power Mode | Lithium & lead-acid batteries | Lithium & lead-acid batteries | Lithium & lead- acid batteries | Lithium & lead- acid batteries | Lithium & lead- acid batteries |
| Wheelbase | 1430mm | 1550mm | 1550mm | 1550mm | 1550mm |
| Performance | |||||
| Travel speed, laden/unladen | 11/12(KM/H) | 9/10(KM/H) | 8/9.5(KM/H) | 9/9.5(KM/H) | 9/10(KM/H) |
| Lifting speed, laden/unladen | 220/250(MM/S) | 180/200(MM/S) | 180/200(MM/S) | 180/200(MM/S) | 180/200(MM/S) |
| Lowering speed, laden/unladen | 450(MM/S) | 450(MM/S) | 450(MM/S) | 450(MM/S) | 450(MM/S) |
| Battery voltage/ nominal capacity | 48V/420Ah | 60V/210Ah | 72V/120Ah | 80V/156Ah | 80V/156Ah |
| Battery weight | 430KG | 300KG | 300KG | 200KG | 200KG |
| Weight | |||||
| Service mass (With battery) | 2710 KG | 2530 KG | 2500 KG | 2680 KG | 2680KG |
| Alex load: unload, front/rear | / | / | / | / | / |
| Alex load: load, front/rear | / | / | / | / | / |
| Maximum negoniable gradient, laden/unladen | 15/20% | 15/20% | 15/20% | 15/20% | 15/20% |
| Electrical configuration | |||||
| Drive motor power-60 minutes | 6.5PMSM/KW | 5PMSM/KW | 5PMSM/KW | 6PMSM/KW | 6PMSM/KW |
| Lift motor power-15 minutes | 6PMSM/KW | 4.5PMSM/KW | 4.5PMSM/KW | 6PMSM/KW | 6PMSM/KW |
| Drive motor controlling mode | MOSFET/PMSM | MOSFET/PMSM | MOSFET/PMSM | MOSFET/PMSM | MOSFET/PMSM |
| Lifting motor controlling mode | MOSFET/PMSM | MOSFET/PMSM | MOSFET/PMSM | MOSFET/PMSM | MOSFET/PMSM |
| Service brake/Parking brake | Hydraulic / Mechanial | Hydraulic / Mechanial | Hydraulic / Mechanial | Hydraulic / Mechanial | Hydraulic / Mechanial |
| Tyre | |||||
| Tyre type | Solid tire | Solid tire | Solid tire | Solid tire | Solid tire |
| Wheels number (front/rear) | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 |
| Front track | 920mm | 945mm | 945mm | 945mm | 945mm |
| Rear track | 898mm | 880mm | 880mm | 880mm | 880mm |
| Tyre (front) | 18×7-10 | 18×7-10 | 18×7-10 | 18×7-10 | 18×7-10 |
| Tyre(rear) | 16×6-8 | 16×6-8 | 16×6-8 | 16×6-8 | 16×6-8 |
| Size | |||||
| Front overhang | 325mm | 325mm | 325mm | 330mm | 330mm |
| Tilt of the mast, front/rear | 5/10° | 5/10° | 5/10° | 5/10° | 5/10° |
| Height, mast retraction | 2030mm | 2030mm | 2030mm | 2030mm | 2030mm |
| Free lift height | / | / | / | / | / |
| Overall maximum lift height | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm |
| Height, mast extended | 4055mm | 4055mm | 4055mm | 4055mm | 4055mm |
| Overhead guard height | 2110mm | 2110mm | 2110mm | 2110mm | 2110mm |
| Lateral Fork Adjustment (Outside of Forks) Max/Min | 1040/100mm | 1040/100mm | 1040/100mm | 1040/100mm | 1040/100mm |
| Fork size (LxWxT) | 35*100*920mm | 40*100*1070mm | 40*100*1070mm | 40*100*1070mm | 40*100*1070mm |
| Truck body length (fork excluded) | 2063mm | 2230mm | 2230mm | 2230mm | 2230mm |
| Truck body width | 1096mm | 1100mm | 1096mm | 1096mm | 1100mm |
| Turning radius | 2070mm | 2280mm | 2280mm | 2280mm | 2280mm |
| Groubd clearance under mast | 88mm | 88mm | 88mm | 88mm | 88mm |
| Ground clearance at center of wheelbase (laden) | 110mm | 110mm | 110mm | 110mm | 110mm |
| Width of aisle right-angle stacking (pallet1000x1000mm clearance 200mm) | 3750mm | 3750mm | 3750mm | 3750mm | 3750mm |
| Width of aisle right-angle stacking (pallet1200x1200mm clearance 200mm) | 3855mm | 3950mm | 3950mm | 3950mm | 3950mm |
| *The company reserves the right to change product design and specifications without notice. | |||||
CPD-20 Electric Forklift Mast Parameter Table
| Gantry form | 1.5T/2.0T | ||||||||||
| Total height | Free lifting height | Gantry inclination | Rated load | ||||||||
| Gantry model | Maximumlifting height | Gantry static height | Rack rack | Shelves without shelves | Rack rack | Shelves without shelves | Front | Rear | Load center distance 500 | ||
| Two wide view gantry | mm | mm | mm | mm | mm | mm | mm | 1.5 | 2.0 | ||
| M200 | 2000 | 1535 | 3080 | 2530 | 0 | 0 | 5 | 10 | 1500 | 1950 | |
| M250 | 2500 | 1785 | 3580 | 3030 | 0 | 0 | 5 | 10 | 1500 | 1950 | |
| M300 | 3000 | 2030 | 3940 | 3480 | 0 | 0 | 5 | 10 | 1500 | 1950 | |
| M350 | 3500 | 2280 | 4440 | 3980 | 0 | 0 | 5 | 10 | 1500 | 1950 | |
| M400 | 4000 | 2600 | 4940 | 4480 | 0 | 0 | 5 | 6 | 1500 | 1800 | |
| M450 | 4500 | 2880 | 5440 | 4980 | 0 | 0 | 5 | 6 | 1400 | 1700 | |
| Two-stage fully free gantry | U250 | 2500 | 1770 | 3455 | 3070 | 781 | 1158 | 5 | 10 | 1200 | 1400 |
| U300 | 3000 | 2070 | 3955 | 3570 | 1031 | 1394 | 5 | 10 | 1500 | 1950 | |
| U400 | 4000 | 2620 | 4955 | 4570 | 1518 | 1944 | 5 | 10 | 1500 | 1950 | |
| Three stage fully free gantry | N400 | 4000 | 1905 | 4970 | 4580 | 1031 | 1416 | 5 | 6 | 1200 | 1850 |
| N450 | 4500 | 2080 | 5570 | 5080 | 1141 | 1614 | 5 | 6 | 1350 | 1700 | |
| N480 | 4800 | 2180 | 5870 | 5380 | 1256 | 1641 | 5 | 6 | 1000 | 1300 | |
| N500 | 5000 | 2280 | 6070 | 5580 | 1306 | 1691 | 5 | 3 | 800 | 1200 | |
| N550 | 5500 | 2439 | 6570 | 6080 | 1481 | 1866 | 3 | 3 | 450 | 850 | |
| N600 | 6000 | 2600 | 7070 | 6580 | 1706 | 2091 | 3 | 3 | 200 | 600 | |
| N650 | 6500 | 2790 | 7570 | 7080 | 1820 | 2152 | 3 | 3 | 100 | 400 | |
| Reduced load rating by 130 kg for all added sideshifts | |||||||||||
CPD-20 Electric Forklift Options List
POWER Product Advantages & Picture Details
Suitable for various voltages and industrial waterproof plugs and socket
Accessories for various working conditions
