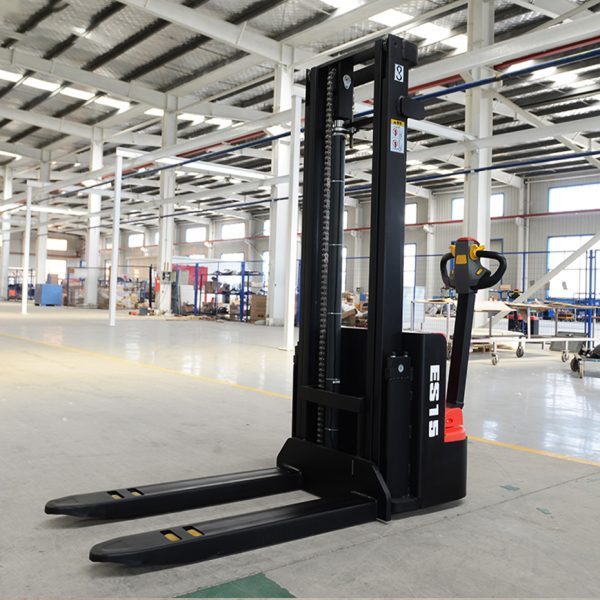

Stacker Parameters
|
Model
|
ES15
|
|
Rated load
|
1500kg
|
|
Load center distance
|
600mm
|
|
Wheelbase
|
1350mm
|
|
Operation type
|
Walking style
|
|
Lifting height of standard gantry
|
3000mm
|
|
Minimum height of fork
|
85mm
|
|
Fork specification (length / width / thickness)
|
1150/170/60mm
|
|
Length of vehicle body
|
1820mm
|
|
Body width
|
805mm
|
|
Minimum turning radius
|
1520mm
|
|
Minimum ground clearance
|
40mm
|
|
Maximum driving speed
(full load / no load) |
4.9/4.9km/h
|
|
Maximum climbing angle
(full load / no load) |
6/10°
|
|
Driving motor
|
0.75kw
|
|
Lifting motor
|
2.2kw
|
|
Battery voltage / capacity
|
24V/80Ah
|
|
Controller
|
Curtis
|
|
Battery weight
|
47kg
|
|
Self weight (including battery)
|
750kg
|
